Laboratory Test of Unidirectional Carbon fiber Laminate HM-1.4T


Introduction

This report presents results oftests carried out on carbon fiber reinforced polymer (CFRP)materials, supplied by xxx Company, Riyadh, Saudi Arabia, to the Department of Civil Engineering, King Saud University.

lhe following is a list of materals supplied

1) HORSE Uni-directional Carbon fiber Laminate(plate) -HM-1.4T

Presented below are the tests that were carried out on the supplied materials as per the specified ASTM standard (ASTM D3039-17)

Tension Testing of CFRP Plate Coupons of HM-1.4T

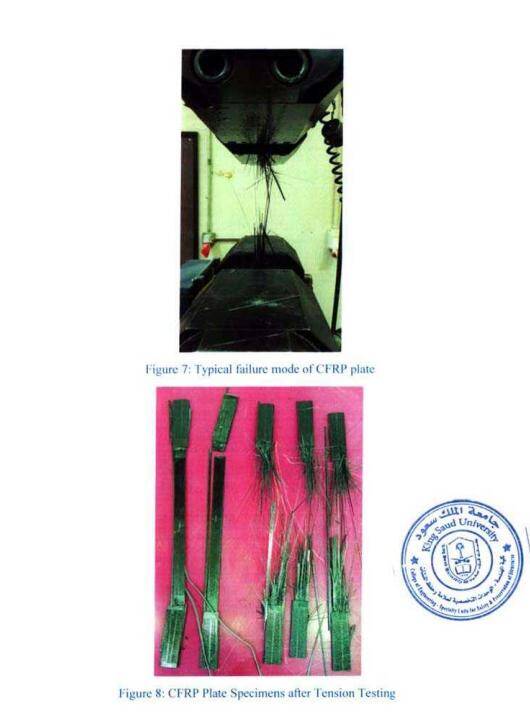

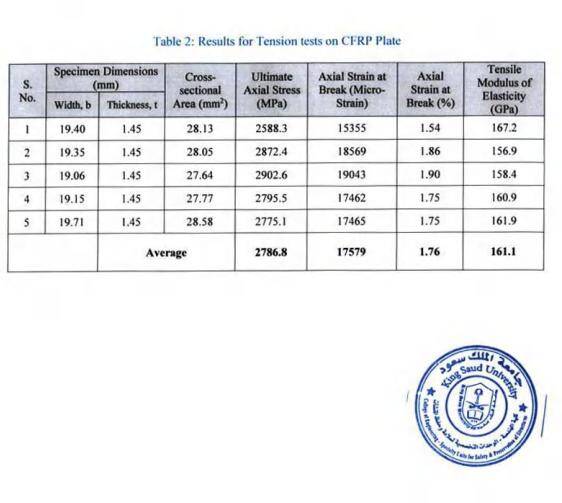

Tension test on carbon plate coupons was carried out as per specifications laid out in ASTMD3039/D3039M-17. Five specimens were tested under uniaxial tension and the results are displayed in Table below.
